技术参数 TECHNICAL PARAMETERS
材质(MATERIAL)：3003-H112
机械性能(Mechanical property):GB/T6892-2000
抗拉强度(Tensile Strength):>90
条件屈服强度(Offset yield strength):>30
延伸率%(Elongation):>22
产品规格表 PRODUCT SPECIFICATIONS TABLE

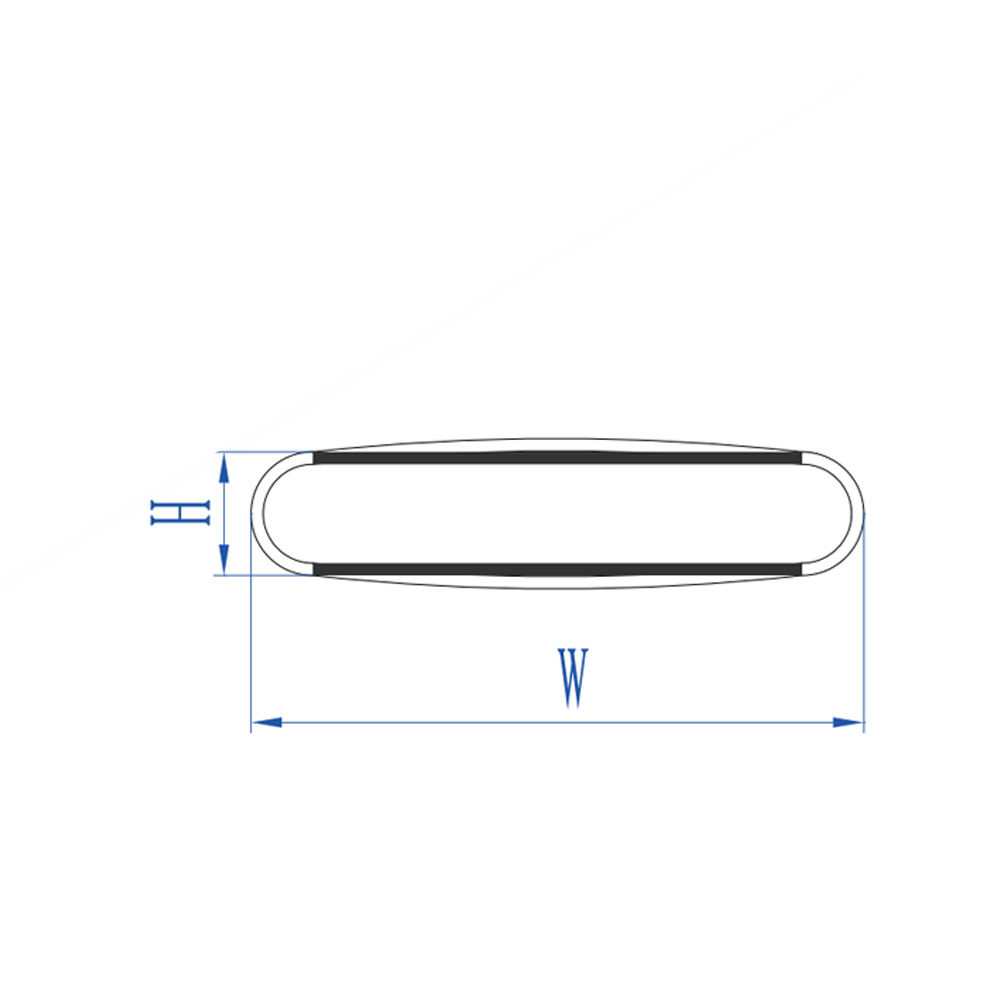

| 型号 (Model) | 宽度 (m) | 厚度 (h) |
|---|---|---|
| 29.8*4.05-1孔/Holes | 29.8 | 4.05 |
| 29.8*6-1孔/Holes | 29.8 | 6 |
| 30*7-1孔/Holes | 30 | 7 |
| 30*9-1孔/Holes | 30 | 9 |
| 31.8*4.1-1孔/Holes | 31.8 | 4.1 |
| 34.5*3.1-1孔/Holes | 34.5 | 3.1 |
| 36*5-1孔/Holes | 36 | 5 |
| 38*4.6-1孔/Holes | 38 | 4.6 |
| 38*6.5-1孔/Holes | 38 | 6.5 |
| 39.4*8-1孔/Holes | 39.4 | 8 |
| 40*5-1孔/Holes | 40 | 5 |
| 40*6-1孔/Holes | 40 | 6 |
| 43*7.9-1孔/Holes | 43 | 7.9 |
| 49.8*4.10-1孔/Holes | 49.8 | 4.10 |
| 50*8-1孔/Holes | 50 | 8 |
| 50*10-1孔/Holes | 50 | 10 |
| 53*6.5-1孔/Holes | 53 | 6.5 |
| 55*8-1孔/Holes | 55 | 8 |
| 56*10.9-1孔/Holes | 56 | 10.9 |
| 57*9-1孔/Holes | 57 | 9 |
| 58*4.6-1孔/Holes | 58 | 4.6 |
| 58*6.5-1孔/Holes | 58 | 6.5 |
| 62*10.1-1孔/Holes | 62 | 10.1 |
| 63.5*8.5-1孔/Holes | 63.5 | 8.5 |
| 65*8-1孔/Holes | 65 | 8 |
| 68*8-1孔/Holes | 68 | 8 |
| 70*6.5-1孔/Holes | 70 | 6.5 |
| 70*7-1孔/Holes | 70 | 7 |
