技术参数 TECHNICAL PARAMETERS
材质(MATERIAL)：3003-H112
机械性能(Mechanical property):GB/T6892-2000
抗拉强度(Tensile Strength):>90
条件屈服强度(Offset yield strength):>30
延伸率%(Elongation):>22

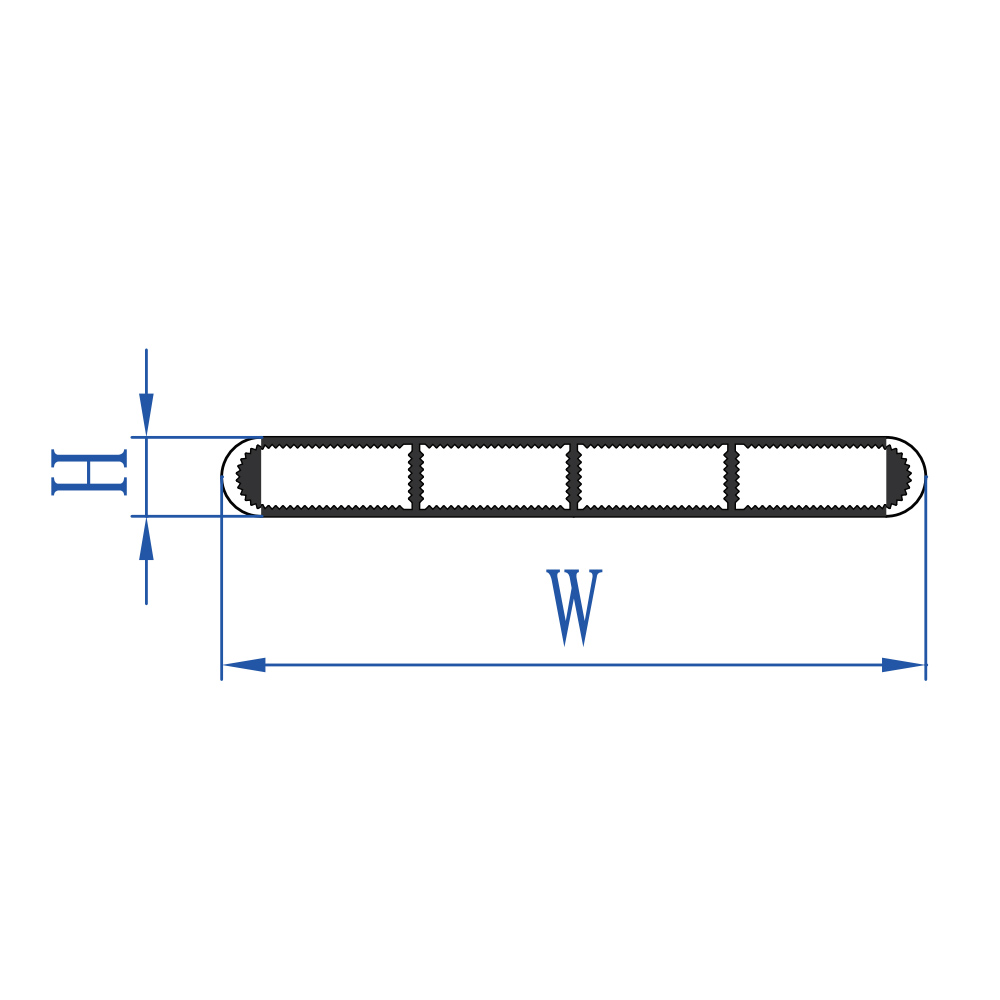

产品规格表 PRODUCT SPECIFICATIONS TABLE
| 型号Model | 宽度（W） | 厚度（H） |
| 25.5*3-4孔/Holes | 25.5 | 3 |
| 27*8-6孔/Holes | 27 | 8 |
| 32*5-5孔/Holes | 32 | 5 |
| 35.5*3-6孔/Holes | 35.5 | 3 |
| 38*6.5-3孔/Holes | 38 | 6.5 |
| 40*5-7孔/Holes | 40 | 5 |
| 48*5-8孔/Holes | 48 | 5 |
| 53*5-15孔/Holes | 53 | 5 |
| 53*6.5-4孔/Holes | 53 | 6.5 |
| 53*6.5-7孔/Holes | 53 | 6.5 |
| 57*6.6-9孔/Holes | 57 | 6.6 |
| 58*6.5-4孔/Holes | 58 | 6.5 |
| 58*6.5-7孔/Holes | 58 | 6.5 |
| 62*6-8孔/Holes | 62 | 6 |
| 64*5-11孔/Holes | 64 | 5 |
| 65*6.4-18孔/Holes | 65 | 6.4 |
| 70*6.5-8孔/Holes | 70 | 6.5 |
| 80*5-16孔/Holes | 80 | 5 |
| 80*6-11孔/Holes | 80 | 6 |
